High Temperature Resistance Wire Highly Flexible Silicone Rubber Electrical Cable
Description:
Temperature Ratings: -60ºC~+180ºC
Voltage: 600/1000V
Cable Structure:
Conductor: Annealed Copper or Tinned Copper
Insulation: Silicone Rubber
Inner Covering:Filling or /and Tape wrapped or/and Extruded
Sheathing:Silicone Rubber
Standard:
1).IEC60502 BS ASTM
2).Different specification and standard can be customized.
Main Technical Data
Type Description &Specification Range we produce

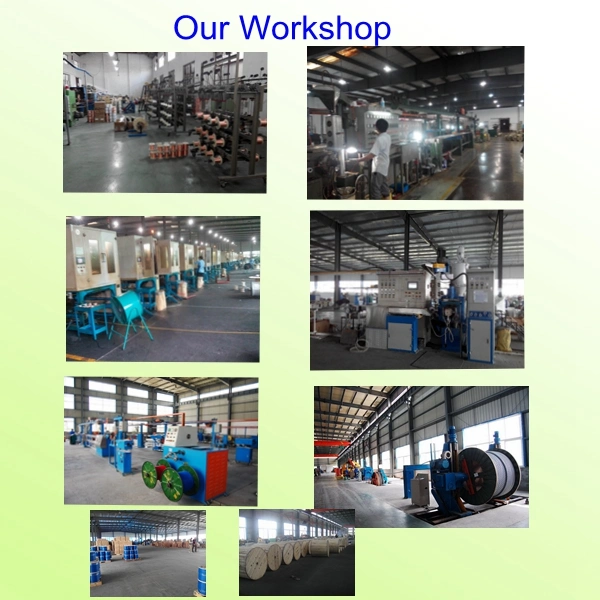

Our workshop
Description:
Temperature Ratings: -60ºC~+180ºC
Voltage: 600/1000V
Cable Structure:
Conductor: Annealed Copper or Tinned Copper
Insulation: Silicone Rubber
Inner Covering:Filling or /and Tape wrapped or/and Extruded
Sheathing:Silicone Rubber
Standard:
1).IEC60502 BS ASTM
2).Different specification and standard can be customized.
Main Technical Data
Type Description &Specification Range we produce
| Type & Description we can supply | Core Number | Nominal cross section area (mm2) |
| Tinned copper conductor Silicone Rubber Insulation and sheathed cable | 1, 2, 3, 4, 5, 3+1,3+2, 4+1 | 1.5~to500 for single core 1.5 ~240 for multi-core |
| Copper conductor Silicone Rubber Insulation and sheathed cable with Steel Tape Armoring | 3, 4, 5, 3+1,3+2, 4+1 | 1.5~240 |
| Flame Retardant Flexible Type Copper conductor Silicone Rubber Insulation and sheathed cable | 1, 2, 3, 4, 5, 3+1,3+2, 4+1 | 1.5~500 for single core 1.5~240 for multi-core |
| Flame Retardant Copper conductor Silicone Rubber Insulation and sheathed rubber cable With Copper wire Braided Shielding Type | 1, 2, 3, 4, 5, 3+1,3+2, 4+1 | 1.5~500 for single core 1.5~240 for multi-core |
| Copper conductor Silicone Rubber Insulation and sheathed rubber cable For Moving usage | 1, 2, 3, 4, 5, 3+1,3+2, 4+1 | 1.5~500 for single core 1.5~240 for multi-core |
