Computer Flat Yarn and Color Flat Yarn Extruder

Computer Flat Wire and Color Flat Wire Extruder Machine                        We make solution and machine                        Help installation and Operating

Featured Products

Computer Flat Wire and Color Flat Wire Extruder Machine

                        We make solution and machine
                        Help installation and Operating
                        Keep Training and maintaining

Video link on Youtube:

Outdoor Optical Cable Extruder Production Line
 Professional and Strong Manufacture and Sells Team:
Team of GEM YOUNG service
NameeducationPositionMainly responsible for projectSpecializing in project Industry working history    ( year )
zanyang XiecollegeGeneral EngineerThe total project design and planning power cable machine15
xioahua HucollegeVis general engineerThe total project design and planning net cable,data cable machine10
Chnaghong ChengcollegeEngineerDrawings and after-sales serviceTeflon,Optical fiber cable machine25
xiuwu ChencollegeGeneral EngineerThe total project design and planning copper drawing machine15
lixin YuancollegeEngineerThe project design and planning coppwer wire making technical16
zhenghai Qiucollegecable engineerAfter servicecable making and cable factory management servie15
jinxin LiucollegeMarketing engineerAfter serviceelectrical engineer7
xingguo TangHigh schoolElectrical engineerAfter serviceelectrical engineer10
changqiang LiHigh schoolMaintain engineerAfter servicemachina maintain and install service10
haipin LiUniversityEngineering director Marketing and salesproject consulting 8
sen YangUniversityEngineering translatorMarketing and salesproject consulting 5
Outdoor Optical Cable Extruder Production Line

1,SZ stranding machine
2,production speed:80m/min
3,Automatic high-speed
4,double wheels
5,single screw

Outdoor Optical Cable Extruder Production Line
1,Equipment application :
 SZ stranding machine mainly used for SZ stranding and laying-up of ¢ 2.0-¢4.5mm loose tube oil-filled optic-fiber.
2,Technical parameters of  SZ stranding equipment:
reinforcement core pay-off reel specificationPN800-PN1250MM
tension wheel diameterø800mm(double wheels)
pay-off reels no of optical-fiber bundle tube12reels(according to clients' requirement)
Max laying-up outer diameterø32mm
production speedmax.80m/min
laying-up pitch(single screw ) (80-1500mm)±5-10mm
  SZ stranding angle  ±(4-24)π
  max revolution speed of cotton wrapping head  3000rpm
 max revolution speed of SZ stranding heads  850rpm
  cotton wrapping pitch  20mm-50mm
  reinforcement core pay-off tension 50N-300N
   take-up tension 50-150N
  take-up reel specification  PN1000-PN1800
  excess loss of laying-up  0.02db/km
Outdoor Optical Cable Extruder Production Line
 3,Main composition are as follows:
NOAll parts' name and specificationQTY
1 Single shaft strengthen core  pay-off rack1SET
2tension dancer1SET
3Optical fiber tube drive pay-off rack12set
4SZ stranding device1set
5double-deck concentric with the points  yarn device1set
6single-deck yarn and strip longitudinal device 1set
7800KG pedrail type haul-off machine1set
8Roller holder1set
9Single shaft cantilever take-up line machine1set
10Electric apparatus, main temperature control cabinet(PC+PLC Computer process control)1set
Outdoor Optical Cable Extruder Production Line

4.GEM Spare Parts Brands:
Motor: Dongguan Motor , Teco, ABB, Siemens
Inverter : Japan Yaskawa, Siemens, Taiwan Teco
Temperature Control Meter: Japan RKC;
Auxiliary Relay: Japan Omron ;
Ammeter and Voltmeter: Taiwan Risesun ;
Indicator, Switch and Button: Taiwan TEND ;
Contactor: Taiwan Shihlin
Line Speed Meter: Taiwan FOTEK/Yangming
Bearing : NSK, SKF
Outdoor Optical Cable Extruder Production Line
5.Afetr service
1).Delivery dates: 45 days
2).Payment: TT or L/C

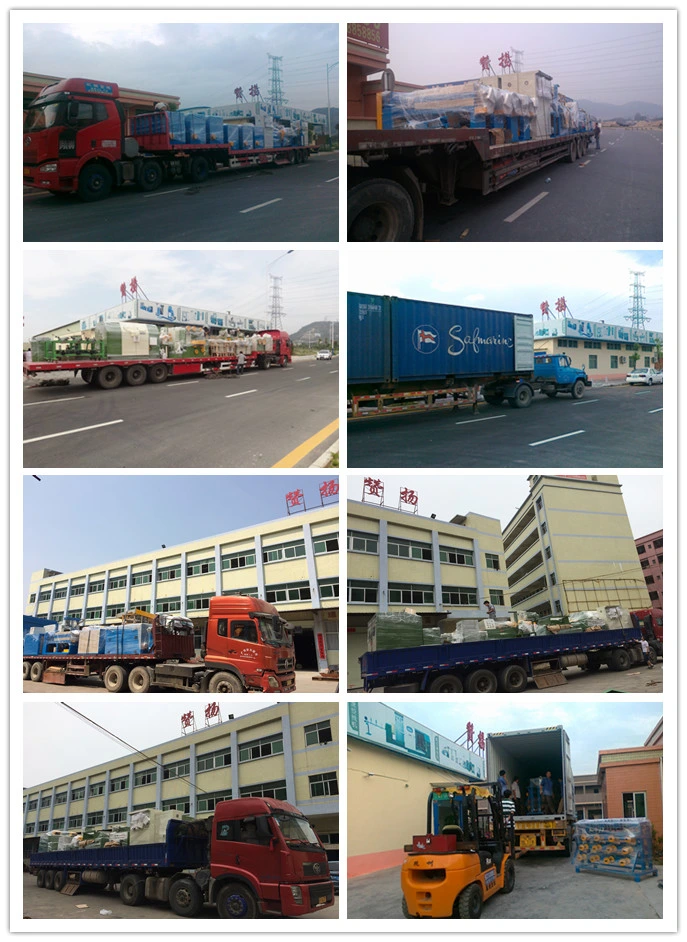

3).Packing: Wood packing and PE plastic packing ensure the goods safety on the transportation.
4). Install and training service: 2 professional engineers who has over 5 years overseas install and cable manufacture training experience.
5) after service phone number online

6.Contact information:

Phone: +8613763134250
Add:No. Beice District, Humen Town,
Dongguan  City, Guangdong Province,China
7.Where are we:
Hongkong airport to Humen by boat 2 hours
Guangzhou airport to Humen by car 2 hours
Shenzhen airport to Humen by car 1 hour
Guangzhou South high speed train station to Humen 20 minutes
Shenzhen North high speed train station to Humen 20 minutes
